Description
Packed Full of features, this is one serious High Performance buggy Works with 2S or 3S batteries!
Based on the Real life size Dune racing buggies this, Desert Racer is a perfect serious Hobby Grade level model with a brushless setup for those who want additional power and speed.
Under the semi-scale tubular roll cage, body panels and cockpit are some Brilliant new and some well established features.
UDI has chosen the best in the business to power this Buggy. A Surpass Hobby 3660-2200KV motor for the brushless system with their waterproof 120Amp fully waterproof ESC system. Coupled with the options of one or two 2S or a 3S LiPo batteries and you will have all the power you need to unleash the ultimate in off road performance. And just when you thought that was good, they added another battery tray, so you can run two batteries in Tandem!
As Standard all models come with a fully functioning drive train, which includes fully selectable two wheel or four wheel drive, and High or Low ratio gearbox options for differnt terrain requirement.
UDI is now an established name in Radio Control, and is known for its strength and durability. This, coupled with the addition of extra long fully adjustable aluminium oil filled shock absorbers, Nitrogen filled dampers and scale looking all terrain real rubber tyres the Buggy is the perfect choice RTR for enthusiasts looking for a rig with a bit of character and a whole lot of speed and performance!
Just take a look at the spec below - Nothing else comes close when comparing price to performance and features!

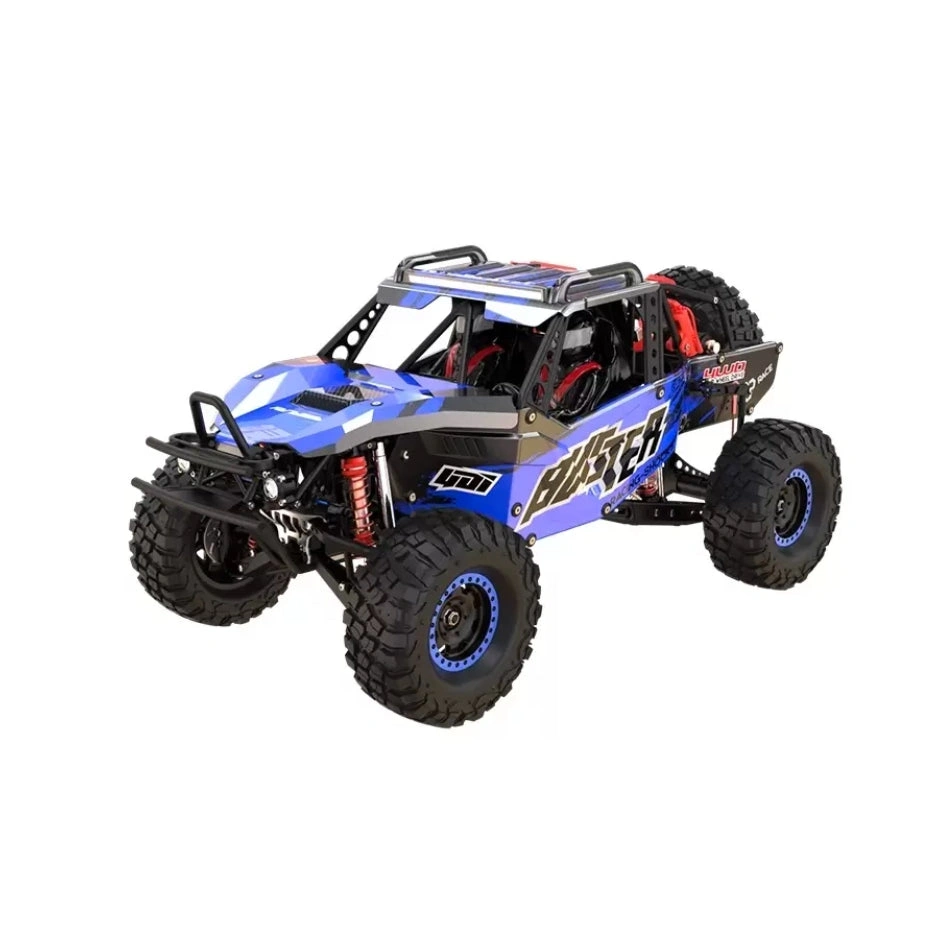

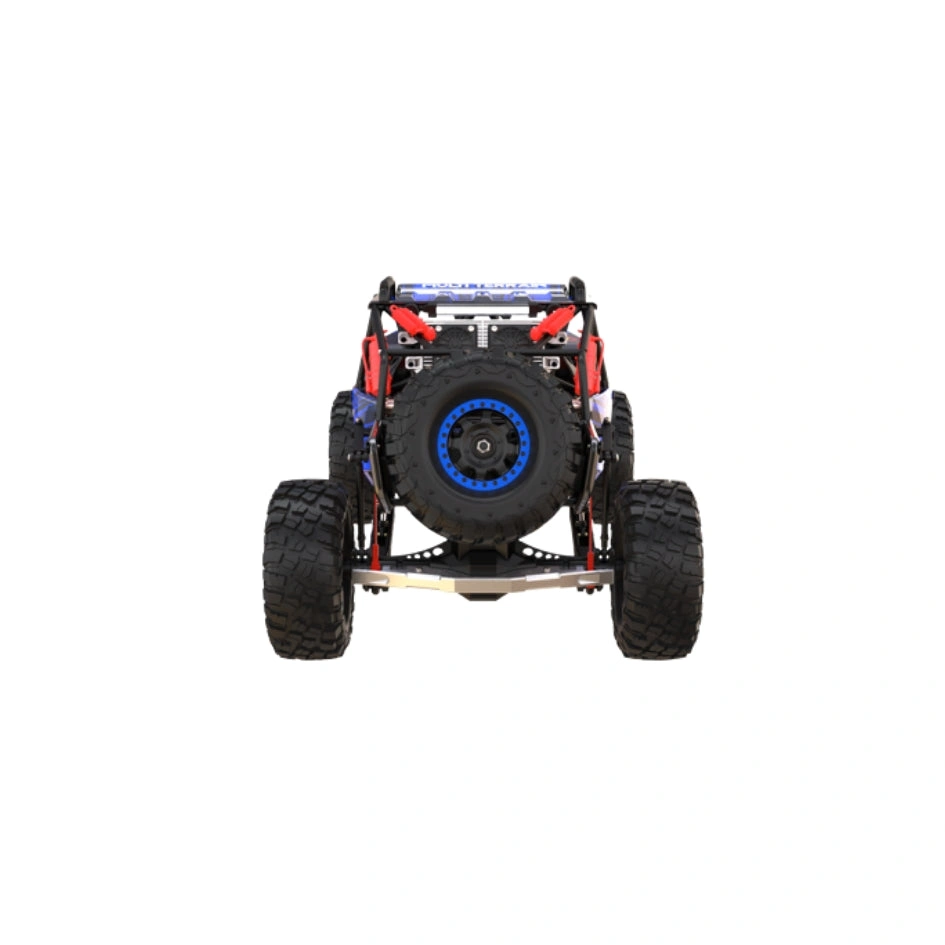

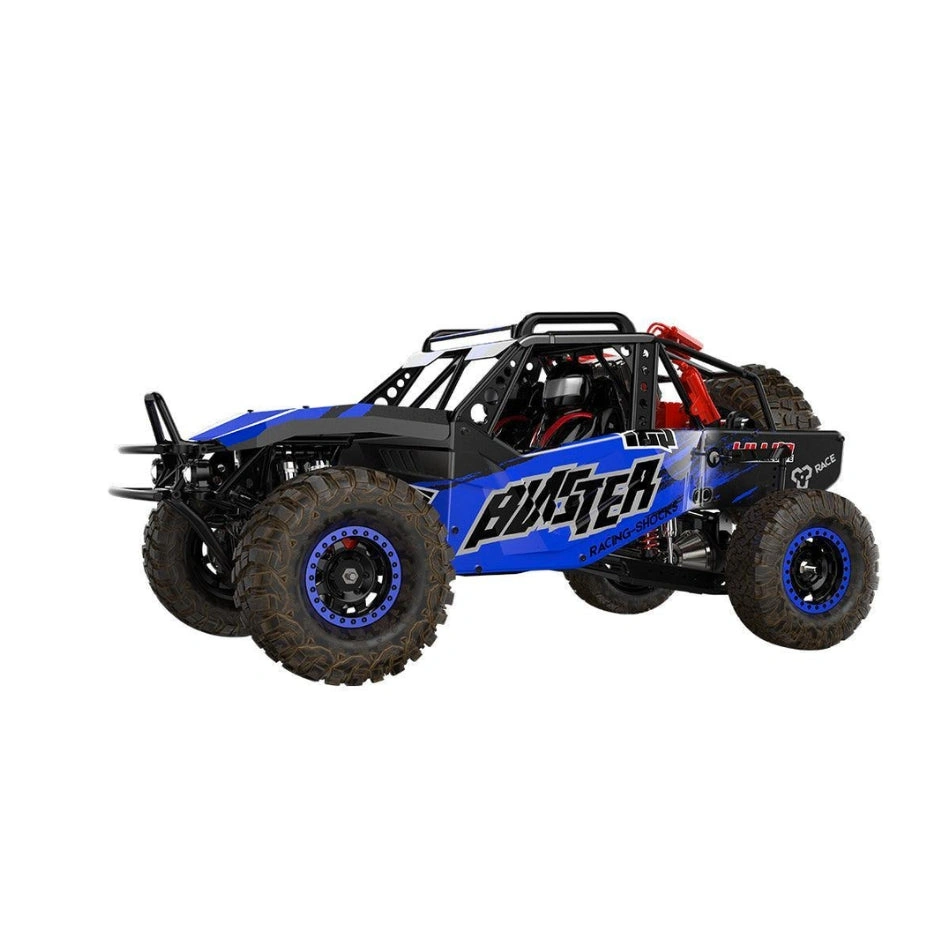

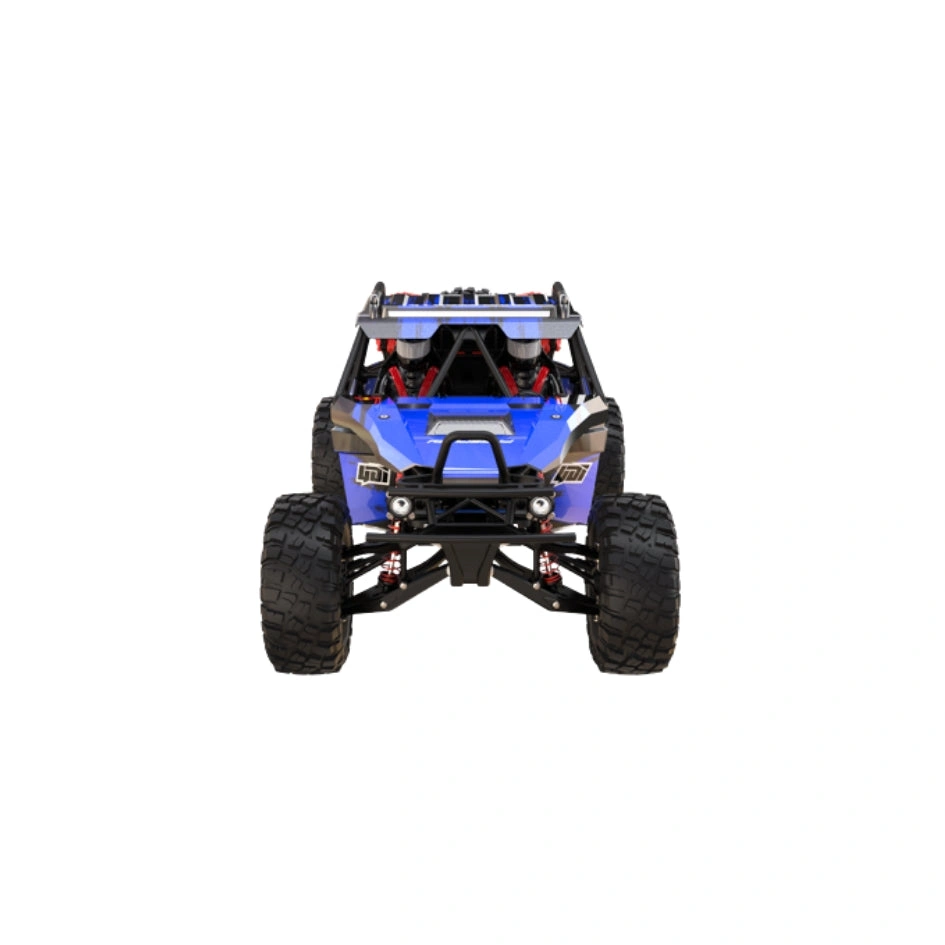

1:10 2.4G High-Performance Desert Racer UDI-UD1001
High Bright LED Lights
·Angel LED Ultra Bright Lights
·Front and internal White LED Lights
·Tail light(Red outside and Yellow inside)
·High-voltage 8 channel power amplifier for intense, brilliant LED lighting
·Regulated output for stable lighting performance (no flickering or dimming as the battery
voltage changes)
Waterproof Electronic Speed Control
·2S or 3s Lipo compatible (one or two batteries can be used)
·Integrated cooling fan
·Real-time telemetry
·Aluminum alloy shell heat sink
·Powered accessory ports
2200KV performance sensorless brushless waterproof motor
·3-pole 2200KV brushless motor
·4mm output shaft
·Finned can for better heat dissipation
Up to 30+mph with 2s Lipo Batteries and 50+mph with 3S Lipo Batteries
Innovative Battery Compartment
·Closed dual battery compartment design
·Accommodates dual 2S Lipo or 3S Lipo batteries
·The battery cover adopts a flexible elastic buckle structure, which disassmbly and installation of batteries easy.
·Supports dual battery parallel use! Harness that power !!!
Decoration
·High Strength PC material bodyshell
·Strong and functional tubular frame mimics full-size off-road racers
·The wheels are also equipped with Psudio “brake calipers”, 14mm metal brake discs with one-piece hex adapters
·One fully-functional spare tyre included.
·Decorative parts include :- fire extinguisher, shock reservoir, battery, oil bottle and metal drive shaft
·The interior is equipped with a simulated driver and driver’s seat
Chassis
·Composite inverted hgh Strength tubular design
·Low Maintenance design
·Designed with a Low center of gravity(CG)for improved handling
·Allows easy access to components
·Equippped with Tough skid plates protect critical components
·Fully integrated tube frame, added rigidity for the whole car
·Reinforced front and rear bumpers to absorb impacts
Suspension
·Provides scale looks and authentic when driving off-road.
·Tough independent double-wishbone front suspension with fixed rod ends
·Triangulated 4-link rear suspension with solid rear axle
·Tough composite trailing arms
·Steel upper links with 3 optional positions for suspension tuning
·Realistic and functional front and rear sway bars
·Detailed functional limit straps on rear axle
·4 x fully adjustable metal hydraulic spring twist shock absorbers
·4 x two-speed reverse metal nitrogen dampers
Steering
·15KG metal gear waterproof steering servo
·Dual bellcrank design with bearings and integrated servo saver
·Solid non-adjustable steering links for rugged durability
Drivetrain
·Steel CV driveshafts(front)with 6mm stub axles
·Steel straight axle(rear)
·Oil-filled limited slip front differential
·Locked steel spool (rear)
·Heavy-duty splined front driveshaft
·Fixed-length steel rear driveshaft
Transmission
·All-steel gear direct drive transmission
·With central differential lock
·Removes as a single piece for easy maintenance
·Fixed-pin gear mesh system
Wheels and Tires
·Off-road tires
·120mm tires
Model UD1001: UDIRC POWER BLASTER 4WD DESERT TRUCK
What’s In The Box:
Blaster Desert Truck with ESC and 2200KV motor
User Manual
2.4GHz 7 channels radio system
Maintenance tools
What You’ll Need:
Batteries - We will supply batteries for the controller, but you will need to choose which batteries you wish to run in the car
Blaster Desert Truck accepts a single 2s Lipo battery (fast), or dual 2s Lipo batteries (Faster and longer run time), or a single 3S Lipo battery (very fast) , or dual 3s Lipo batteries (Turns the car into a rocket!!!)
Charger
Recommend to use a charger for Easy and fast charging performance
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter (provided Free of charge)
Specification
Model No: UD1001
Length: 550mm
Width: 295mm
Height: 250mm
Rear wheel track: 249mm
Front wheel track: 240mm
Wheel base:345mm
Bauchfreiheit: 56mm
Weight: 3.8KG
Front Shock Length: 115mm
Front Threaded Shock Length: 112mm
Rear Shock Length: 115mm
Rear Threaded Shock Length: 112mm
Tires(pre-glued): 120mm × 48mm
Speed Control: Included
Motor(electronic): 2200kV
Transmission: Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio: 17.89:1
Front Differential Type: Sealed, 4-gear
Rear Differential Type: Locked spool
Center Differential Type: Sealed, 4-gear (1M weight oil)
Chassis Structure/Material: Inverted composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcranks with ball bearings
Radio System: 7-channel transmitter with receiver
Servos: Included
Top Speed(stock gearing): 2s LiPo – 30+ mph，3s LiPo – 50+ mph
